A-Circuit
I-FR-A Terminals
Voltage Set Point 14.4V
233233
F602
(Ref# 35-216)

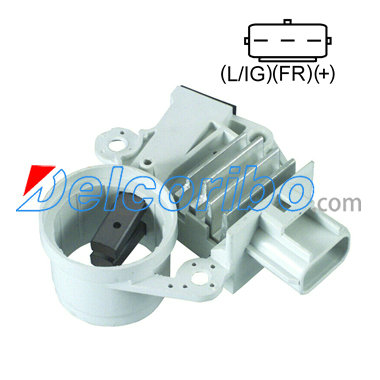

Regulator / Brush Holder Assy.
12 Volt, A-Circuit, I-FR-A Terminals
14.4 Vset, 7 sec. LRC, White w/ White Cover*
For: Ford 6G Series IR/IF Alternators
Used On: (2002-98) Ford, Mercury
Replaces: Ford XR2U-10C359-AB, XS7U-10C359-AC, XS7U10C359AC, WAGNER F0816, GAUSS GA892, XR2U10C359AB, XS7U10C359AC, XS7U10C359AC, WAGNERF0816, GAUSSGA892
Unit Nos: Ford 98BB-10300-CC, 98BB10300CC, 1L5U10300AA, 1L5Z10346AA, 2C3U10300BB, 2F1U10300CA, 4069776, 98BB-10300-CC, F8RZ10346CC, XS8Z10346BB, F8RZ-10346-CC, WR2A-10300-AC, WR2A10300AC, XS8Z-10346-BB, XS91-10300-BB
Lester Nos: 8250
Note: Regulator shutdown with loss of sense (A) or light (I) connection.
FR provides feedback to vehicle PCM.
*F602 also replaces Ford OE white body regulator w/ gray cover
Components:
38-217-1 Brush
39-2702 Brush Spring
AS-PL ARE9016
CASCO CRE14113AS
ERA 215184
LAUBER CQ1010255
MESSMER 215184
MOBILETRON VR-F920 VRF920
PARTS-MALL PXPBL-002 PXPBL002
PowerMax 81110740
SANDO SRE14113.0 SRE141130
WAIglobal F602
