Nissan Voltage Regulator 23133-26E60, 23133-F6100

A-Circuit
S-L
Voltage Set Point 14.6V

132993
IH239
(Ref# 35-8107)

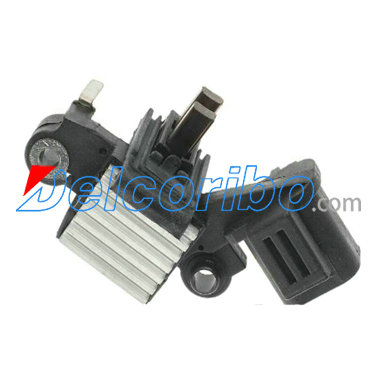

Regulator / Brush Holder Assy.
12 Volt, A-Circuit, S-L Terminals, 14.6 Vset
For: Hitachi IR/IF Alternators
Used On: (1991-85) Nissan
Replaces:Hitachi L180-7315, L1807315, Nissan, Infiniti 23133-26E60, 23133-F6100, 2313326E60, 23133F6100,
Unit Nos: Hitachi LR170-721B, LR170-704, LR170-713, LR170-721, LR170-721B, LR180-704, LR180-704B, LR190-, LR180-721B, LR190-704B, LR190-709B, LR190-711, LR170721B, LR170704, LR170713, LR170721, LR170721B, LR180704, LR180704B, LR190, LR180721B, LR190704B, LR190709B, LR190711
Lester Nos: 14651, 14661, 14752
WAI Ref. Nos: 1-1122-01HI, 1-1533-01HI
Note: With capacitor. For version wo/ capacitor use IH238
Components:
38-8103 Brush
TRI421 Repair Circuit

ACDELCO C641
AIRTEX / WELLS 1V1248
ALANKO 700383, 700384
AS-PL ARE2030
CASCO CRE20114AS
MOBILETRON VR-H2000-7H VRH20007H
SANDO SRE20114.0 SRE201140
STANDARD VR520
WAIglobal IH238, IH239
PowerMax 81114977

NISSAN
MAXIMA 3.0L V6 1990
3.0L V6 DOHC 1992
3.0L V6 SOHC 1992 1993
