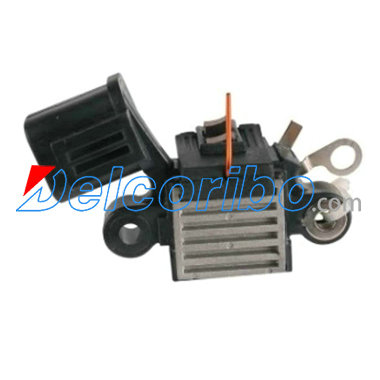

Nissan 23133-58S00, 23133-58S01, 23133-D4401 Voltage Regulator

A-Circuit
S-L
Voltage Set Point 14.3V

132991
IH242
(Ref# 35-8104)
Regulator / Brush Holder Assy.
12 Volt, A-Circuit, S-L Terminals, 14.3 Vset
For: Hitachi IR/IF Alternators
Used On: (1990-86) Nissan
Replaces: Hitachi L160-43154, L170-53151, L170-13151, L160-43154, L170-8315, L16043154, L17053151, L17013151, L16043154, L1708315, Nissan 23133-58S00, 23133-58S01, 23133-D4401, 2313358S00, 2313358S01, 23133D4401,
Unit Nos: Hitachi LR160-715, LR160-715, LR170-714, LR170-715, LR170-715B, LR170-716, LR170-716B, LR170-, LR170-717, LR170-727, LR180-715, LR180-718, LR180-718B, LR180-719, LR160715, LR160715, LR170714, LR170715, LR170715B, LR170716, LR170716B, LR170, LR170717, LR170727, LR180715, LR180718, LR180718B, LR180719,
Lester Nos: 13273, 13327, 14241, 14242, 14719, 14979
WAI Ref. Nos: 1-1098-01HI, 1-1102-01HI, 1-1120-01HI, 1-1125-01HI, 1-1126-01HI, 1-1126-02HI, 1-1870-01HI, 1-2166-01HI
Components:
38-8106 Brush
TRI422 Repair Circuit

ALANKO 700388
AS-PL ARE2012
CASCO CRE20115AS
ERA 215382
MESSMER 215382
MOBILETRON VR-H2000-5H VRH20005H
PowerMax 81116165
SANDO SRE20115.0 SRE201150
WAIglobal IH242
ACDELCO E666
AIRTEX / WELLS 1V1244
LAUBER CQ1010213
STANDARD VR422

NISSAN 100 NX (B13) 1990/03 - 1996/01
NISSAN SUNNY II (N13) 1986/06 - 1991/10
NISSAN SUNNY III Hatchback (N14) 1990/10 - 1995/07
NISSAN PRAIRIE PRO (M11) 1988/10 - 1994/07
NISSAN SUNNY III (N14) 1990/05 - 1996/12
