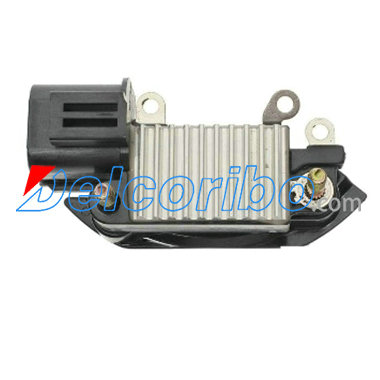

Nissan 23215-64J00, 2321564J00 Voltage Regulator

A-Circuit
S-L
Voltage Set Point 14.4V

IH248
(Ref# 35-8116)
Regulator
12 Volt, A-Circuit, S-L Terminals, 14.3 Vset
For: Hitachi IR/IF Alternators
Used On: (1994-90) Infiniti, Nissan
Replaces: Hitachi L180-8315, L1808315, Nissan 23215-64J00, 2321564J00, LR1808315
Unit Nos: Hitachi LR160-723, LR160-723B, LR170-734B, LR170-739, LR180-725, LR180-729, LR160723, LR160723B, LR170734B, LR170739, LR180725, LR180729,
Lester Nos: 13273, 13285, 13287, 13329, 13533
WAI Ref. Nos: 1-1118-01HI, 1-1119-01HI, 1-1425-01HI, 1-1427-01HI, 1-1429-01HI
Note: With trio terminal.
Similar to IH762 except IH762 has stator terminal.
Components:
TRI248 Repair Circuit

ACDELCO E650
AIRTEX / WELLS 1V1162
ALANKO 700389, 700416
ASHIKA 77-01-198 7701198
AS-PL ARE2013, ARE2022
CASCO CRE20116AS, CRE20118AS
ERA 215386
JAPANPARTS RE-198 RE198
JAPKO 77198
LAUBER CQ1010178
MDR MAR-9198 MAR9198
MESSMER 215386
MOBILETRON VR-H2000-17 VRH200017, VR-H2000-18 VRH200018
PowerMax 1112338, 81112338, 81114515
SANDO SRE20116.0 SRE201160, SRE20118.0 SRE201180
STANDARD VR465
WAIglobal IH248, IH762

NISSAN PRIMERA (P10) 1990/06 - 1996/06
NISSAN MICRA II (K11) 1992/01 - 2003/02
NISSAN TERRANO I (WD21) 1986/07 - 1996/02
NISSAN PRIMERA Hatchback (P10) 1990/06 - 1996/06
