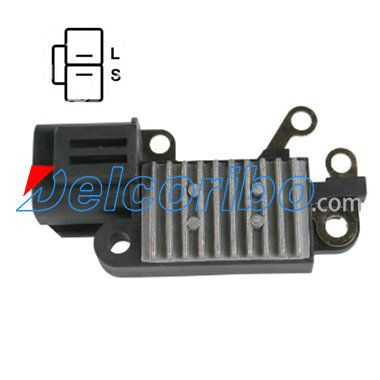

Nissan 23215-64J02, 2321564J02 Voltage Regulator

A-Circuit
S-L
Voltage Set Point 14.3V

135022
IH762
(Ref# 35-8123)
Regulator
12 Volt, A-Circuit, S-L Terminals, 14.3 Vset
For: Hitachi IR/IF Alternators
Used On: (1996-93) Nissan
Replaces: Hitachi L180-5340, L180G-5340, L180G-9340, 1805340, L180G5340, L180G9340, Nissan 23215-64J02, 2321564J02,
Unit Nos: Hitachi LR160-724, LR160-724, LR170-739B, LR170-740, LR170-740B, LR170-741, LR180-725C, LR180-, LR180-725B, LR180-725E, LR180-734B, LR180-734C, LR180-736B, LR190-717, LR160724, LR160724, LR170739B, LR170740, LR170740B, LR170741, LR180725C, LR180, LR180725B, LR180725E, LR180734B, LR180734C, LR180736B, LR190717,
Lester Nos: 13329, 13474, 13531, 13533, 13534
WAI Ref. Nos: 1-1120-01HI, 1-1427-01HI, 1-1429-01HI, 1-1953-01HI, 1-1954-01HI
Note: With stator terminal.
Similar to IH248 except IH248 has trio terminal.
Components:
TRI767 Repair Circuit

ALANKO 700389, 700416
AS-PL ARE2022
CASCO CRE20116AS
ERA 215401
MESSMER 215401
MOBILETRON VR-H2000-18 VRH200018
PowerMax 1112338, 81112338
SANDO SRE20116.0 SRE201160
ACDELCO E681
AIRTEX / WELLS 1V1246
LAUBER CQ1010178
STANDARD VR538
WAIglobal IH762
AINDE H-2000-18 H200018

NISSAN TERRANO II (R20) 1992/10 - /
NISSAN PICK UP (D21) 1985/09 - 1998/02
NISSAN PICK UP (D22) 1997/01 - /
NISSAN PATROL GR I (Y60, GR) 1987/08 - 1998/02
