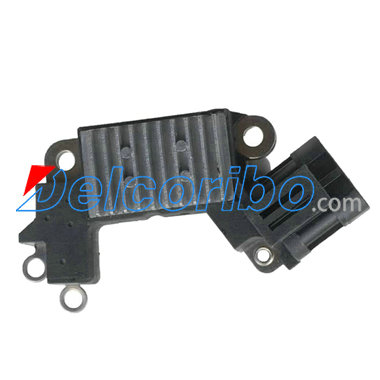

Hitachi GD109019-S, L170G-5315, L170G-6315 Voltage Regulator

A-Circuit
S-L
Voltage Set Point 14.3V

138727
IH767
(Ref# 35-8126)
Regulator
12 Volt, A-Circuit, S-L Terminals, 14.3 Vset, wo/ LRC
For: Hitachi IR/IF Alternators
Used On: (1999-95) Nissan
Replaces: Hitachi GD109019-S, L170G-5315, L170G-6315, L180G-23401, GD109019S, L170G5315, L170G6315, L180G23401, Nissan, Infiniti 22020-85M10, 23215-0M000, 23215-0M800, 23215-0M801, 23215-0M810, 2202085M10, 232150M000, 232150M800, 232150M801, 232150M810, MOBILETRON VR-H2000-38
Unit Nos: Hitachi LR160-727, LR165-711, LR165-711B, LR170-743, LR170-745, LR170-745B, LR170-746, LR170-746E, LR170-746F, LR170-746G, LR170-746J, LR170-748, LR170-748B, LR170-750C, LR170-750E, LR170-752, LR170-752B, LR180-741, LR180-741B, LR180-741H, LR180-744, LR190-725B, LR190-725E, LR190-732, LR1125-704, LR1125-704B, LR160727, LR165711, LR165711B, LR170743, LR170745, LR170745B, LR170746, LR170746E, LR170746F, LR170746G, LR170746J, LR170748, LR170748B, LR170750C, LR170750E, LR170752, LR170752B, LR180741, LR180741B, LR180741H, LR180744, LR190725B, LR190725E, LR190732, LR1125704, LR1125704B,
Lester Nos: 13636, 13637, 13640, 13643, 13644
WAI Ref. Nos: 1-2001-01HI, 1-2002-01HI, 1-2091-01HI, 1-2093-01HI, 1-2152-01HI
Note: Similar to IH782 except IH782 has 5 sec LRC.
Components:
TRI767 Repair Circuit
Features:
Short-circuit protected

ALANKO 700450
CASCO CRE20111AS
MOBILETRON VR-H2000-42 VRH200042, VR-H2000-38 VRH200038
SANDO SRE20111.0 SRE201110
WAIglobal IH767
AS-PL ARE2017, ARE2071
PowerMax 81113568
