Lucas 37625, UCB149, UCB140, UCB130 Voltage Regulator
VRT1357 Voltage Regulators
132106
IL221
Regulator
12 Volt, A-Circuit, 14.3 Vset
For: Lucas IR/EF Alternators
Used On: Ford-New Holland
Replaces: Lucas 37625, UCB149, UCB140, UCB130, 37702, 37687, 37662, 37662B
Unit Nos: Lucas 24071, 24071A, 24072, 24072A, 24072B, 24079, 24186, 24186A, 24186B, 24191, 24191A, 24210, 24210A, 24211, 24211A, 24236

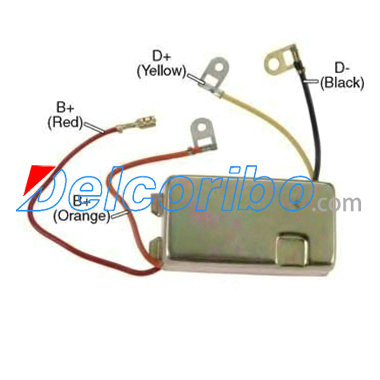

Terminal ID: Black D-, Orange B+, Red B+, Yellow D+, Case DF
CAUTION: Senses through thermistor on vehicle. Do NOT test
with full voltage, need 1/4 watt, 200 ohm resistor to test.
IL221
Regulator
12 Volt, A-Circuit, 14.3 Vset
For: Lucas IR/EF Alternators
Used On: Ford-New Holland
Replaces: Lucas 37625, UCB149, UCB140, UCB130, 37702, 37687, 37662, 37662B
Unit Nos: Lucas 24071, 24071A, 24072, 24072A, 24072B, 24079, 24186, 24186A, 24186B, 24191, 24191A, 24210, 24210A, 24211, 24211A, 24236
Terminal ID: Black D-, Orange B+, Red B+, Yellow D+, Case DF
CAUTION: Senses through thermistor on vehicle. Do NOT test
with full voltage, need 1/4 watt, 200 ohm resistor to test.
ALANKO 700113
PowerMax 81115321
WAIglobal IL221
LAUBER CQ1010150
PowerMax 81115321
WAIglobal IL221
LAUBER CQ1010150
