A-Circuit
Voltage Set Point 14.3V
133789
IL224-1
(Ref# 35-9210)

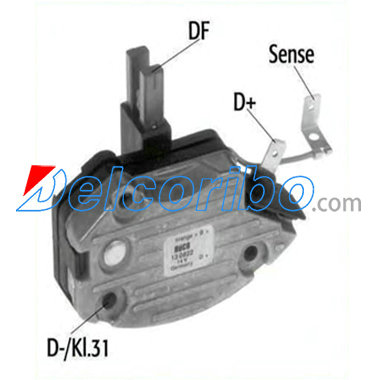

Regulator / Brush Holder Assy.
12 Volt, A-Circuit, 14.3 Vset
For: Lucas A127 Series Alternators
Used On: Ford Tractor
Replaces: Lucas 37735, UCB153, 000028006010, 28006
Unit Nos: Lucas 24256, A127, 054022310010, 054022420010, 054022481010, 063324295010, 063324311010, 24246, 24246A, 24256A, 24256C, 24273, 24274, 24277, 54022310, 54022336, 54022337, 54022481, Marelli 54022336D
Caution: Battery sense through external thermistor on vehicle.
Do not apply full voltage (14V) to wire, will damage regulator.
Need 1/4 watt 200 ohm resistor between S-terminal wire (orange)
to B+ to test.
HITACHI 130822
MAGNETI MARELLI 000028006010
PowerMax 1110642, 81110642
ALANKO 700116
BOSCH F 042 320 194 F042320194
CASCO CRE25103GS
ERA 215485
LAUBER CQ1010214
MESSMER 215485
MOBILETRON VR-LC113L VRLC113L
SANDO SRE25103.1 SRE251031
WAIglobal IL224
FORD SCORPIO I (GAE, GGE) 1985/04 - 1994/09
FORD SIERRA (GBG, GB4) 1987/01 - 1993/02
FORD TAUNUS (GBTS, GBFS, CBTS) 1975/05 - 1979/07
FORD TAUNUS ′80 Turnier (GBNS) 1979/07 - 1982/07
FORD TRANSIT Bus (T_ _) 1985/10 - 1992/09
FORD TRANSIT Box (E_ _) 1991/05 - 1994/06
FORD TRANSIT Platform/Chassis (E_ _) 1991/04 - 1994/08
FORD FIESTA Box (FVD) 1983/03 - 1995/12
FORD CAPRI III (GECP) 1978/01 - 1987/04
FORD P 100 I 1982/04 - 1987/09
