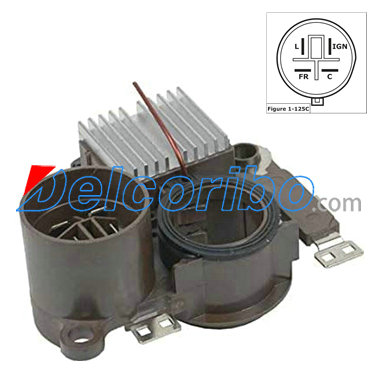

Honda Voltage Regulator 04314-P08-004, 04314P08004

A-Circuit
C-FR-IG-L
24mm ID
Voltage Set Point 14.5V

IM835
(Ref# 35-8354)
Regulator / Brush Holder Assy.
12 Volt, A-Circuit, C-FR-IG-L Terminals, 14.7 Vset
For: Mitsubishi IR/IF Alternators
Used On: (1995-92) Honda
Replaces: Honda 04314-P08-004, 04314P08004, Mitsubishi 266, A866X26641, A866X26682 (regulator
stamped: 266)
Unit Nos: Honda 31100-P08-004, 31100-P08-024, 31100P08004, 31100P08024, Mitsubishi A5T06391, A5T06491, A7T00891
Lester Nos: 13608, 13700
WAI Ref. Nos: 1-1831-01MI, 1-1876-01MI
Note: L-terminal is an output terminal.
Components:
TRI835 Repair Circuit

ERA 215564
LAUBER CQ1010073
MESSMER 215564
MOBILETRON VR-H2009-50 VRH200950
PARTS-MALL PXPBG-042 PXPBG042
PowerMax 1114653, 81114653
WAIglobal IM835
AIRTEX / WELLS 1V1131

HONDA
CIVIC 1.5L L4 1992
CIVIC DEL SOL 1.5L L4 1993
