Mazda RF71-18-W70, RF71-18-W70A, RF7118W70 Voltage Regulator

A-Circuit
S-L
Slip-On Brush-Ring
39mm ID
Voltage Set Point 14.5V

136549
IM282

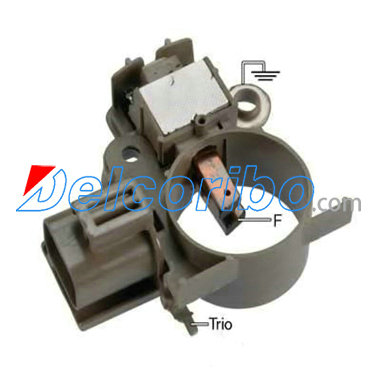

Regulator / Brush Holder Assy.
12 Volt, A-Circuit, S-L Terminals, 14.5 Vset
For: Mitsubishi IR/IF Alternators
Used On: Mazda Capella, Mitsu Pajero (Diesel) (non-USA)
Replaces: Mazda RF71-18-W70, RF71-18-W70A, RF7118W70, RF7118W70A, Mitsubishi Motors MD160671, Mitsubishi A866X12682
Unit Nos: Mazda RF71-18-300E, RF71-18-300G, RF71-18-300H, RF92-18-300A, RF92-18-300C, RF92-18-300D, S5A2-18-300B, RF7118300E, RF7118300G, RF7118300H, RF9218300A, RF9218300C, RF9218300D, S5A218300B,, Mitsubishi A3T01877, A3T01877A, A3T01877B, A3T04177, A3T04178, A3T04199, A3T05676, A003T01871, A003T01872, A003T01877, A003T01877A, A003T01877B, A003T04177, A003T04178, A003T04199, A003T07483, A3T01871
Dim: 39mm ID Slip Ring Cover
Note: Not interchangeable with IM281

ALANKO 700381
AS-PL ARE5030, ARE5030M, ARE5006
CASCO CRE35107AS
ERA 215537
LAUBER CQ1010646
MESSMER 215537
MOBILETRON VR-H2009-30 VRH200930
PowerMax 81111777, 1115844, 81115844
SANDO SRE35107.0 SRE351070
WAIglobal IM282

HYUNDAI H100 Bus (P) 1993/07 - 2004/10
MAZDA 626 III (GD) 1987/06 - 1992/05
MAZDA 626 III Hatchback (GD) 1987/06 - 1992/05
MITSUBISHI L 300 Bus (P0_W, P1_W, P2_W) 1986/11 - /
MITSUBISHI PAJERO II (V3_W, V2_W, V4_W) 1990/12 - 1999/10
MITSUBISHI L 300 Platform/Chassis (P1_T ) 1994/04 - 2000/04
