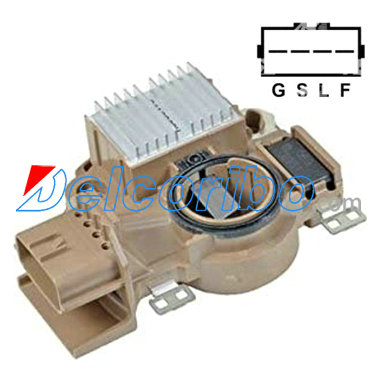

Mitsubishi A866X34172 Voltage Regulator

A-Circuit
G-S-L-F
Voltage Set Point 14.5V

138340
IM341
Regulator / Brush Holder Assy.
12 Volt, A-Circuit, C(G)-S-L-FR Terminals, 14.5 Vset
For: Mitsubishi IR/IF Alternators
Used On: (2005-97) Chrysler, Dodge, Mitsubishi
Replaces:Mitsubishi A866X34172, Mitsubishi Motors MD619268, MD619900, Original Reference Number 3410328F, 3410707F, 3416909R
Unit Nos: Mitsubishi A2TA4991, A2TA5191, A2TA5391, A2TA5394, A3TB3491, 1800A070, 1800A222, A002TA4991, A002TA5191, A002TA5391, A002TA5391ZT, A002TA5394, A002TB0892, A002TB5791ZC, A002TB7391
Lester Nos: 13750, 13751, 13787, 13840, 13886
WAI Ref. Nos: 1-2118-01MI, 1-2118-02MI;1-2204-01MI, -02MI;1-2355-02MI
Dim: 24mm ID Slip Ring Cover
Note: Stator activated
Components:
TRI341 Repair Circuit

ALANKO 700125
AS-PL ARE5035
ERA 216080
LAUBER CQ1010673
MESSMER 216080
MOBILETRON VR-H2009-70A VRH200970A
PARTS-MALL PXPBG-023 PXPBG023
PowerMax 81110751
WAIglobal IM341, IM341HD
AIRTEX / WELLS 1V1212

MITSUBISHI CARISMA (DA_) 1995/07 - 2006/06
MITSUBISHI COLT V (CJ_, CP_) 1995/09 - 2003/09
MITSUBISHI LANCER VI (CJ-CP_) 1995/09 - 2003/08
MITSUBISHI CARISMA Saloon (DA_) 1996/09 - 2006/06
MITSUBISHI GALANT VI (EA_) 1996/09 - 2004/10
MITSUBISHI PAJERO II Canvas Top (V2_W, V4_W) 1990/12 - 2000/04
MITSUBISHI SPACE STAR (DG_A) 1998/06 - 2004/12
MITSUBISHI PAJERO PININ (H6_W, H7_W) 1999/03 - 2007/06
