Mazda Z599-18-W70, Z59918W70 Voltage Regulator

138872
IM345
(Ref# 35-8347)

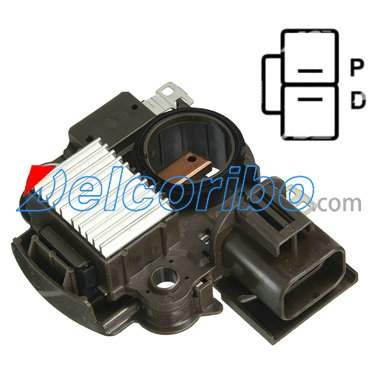

Regulator / Brush Holder Assy.
12 Volt, A-Circuit, D-P Terminals, 14.3 Vset
For: Mitsubishi ED/IF Alternators
Used On: (2001-97) Kia, Mazda
Replaces:Mazda Z599-18-W70, Z59918W70, Mitsubishi 345, A866X34572, A866X35472, Original Reference Number 354, 3546906P
Unit Nos: Mazda Z599-18-300A, Z599-18-300C, Z5A1-18-300, Z59918300A, Z59918300C, Z5A118300, Mitsubishi A2TB0091, A2TB2391, A002TB0091, A002TB0091A, A002TB0091B, A002TB0191, A002TB0191A, A002TB0191B, A002TB2391, A002TB6191, A002TB6192
Lester Nos: 13718
WAI Ref. Nos: 1-2061-01MI
Caution: IM345 is NOT a traditional regulator, but a field control
unit that works with the vehicle’s computer (PCM) to control the
voltage and output. Traditional test methods will immediately
damage D-P Type regulators. See VRC101-26 regulator test
adapter.
Components:
TRI345 Repair Circuit

AS-PL ARE5019, ARE5019T
CASCO CRE35130AS
MOBILETRON VR-H2009-95 VRH200995
PowerMax 1114116, 81114116
SANDO SRE35130.0 SRE351300
WAIglobal IM345
ERA 215549
MESSMER 215549

MAZDA 323 C V (BA) 1994/08 - 2000/09
MAZDA 323 S V (BA) 1992/09 - 2003/12
MAZDA 626 V Station Wagon (GW) 1998/01 - 2002/10
MAZDA MX-5 II (NB) 1998/01 - 2005/10
MAZDA 323 F VI (BJ) 1998/09 - 2004/05
MAZDA 323 P V (BA) 1996/10 - 1998/09
MAZDA DEMIO (DW) 1996/10 - 2003/07
MAZDA PREMACY (CP) 1999/07 - 2005/03
MAZDA 3 (BK) 2003/10 - 2009/12
MAZDA 3 Saloon (BK) 1999/09 - 2009/06
MAZDA 5 (CR19) 2005/02 - /
MAZDA 5 (CW) 2010/09 - /
