F0JY-10316-A, F0JY10316A, GRE805 Voltage Regulator for MAZDA

A-Circuit
S-L
26mm ID
Voltage Set Point 14.5V

135032
IM837
(Ref# 35-8334)

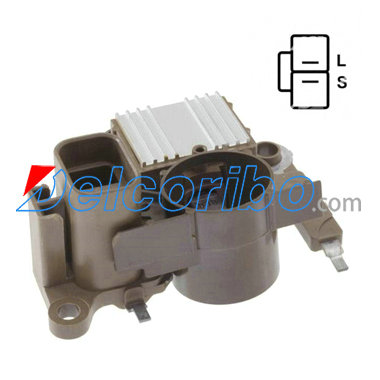

Regulator / Brush Holder Assy.
12 Volt, A-Circuit, S-L Terminals, 14.4 Vset
For: Mitsubishi IR/IF Alternators
Used On: (1994-91) Mercury Capri
Replaces: Ford F0JY-10316-A, F0JY10316A, GRE805, GRE-805, Mitsubishi A866X21072, A866X17082 (regulator stamped: 210)
Unit Nos: Ford F0JY-10346-A, F2JY-10346-A, F0JY10346A, F2JY10346A, Mitsubishi A2T32899, 92JA10300AA
Lester Nos: 13282
WAI Ref. Nos: 1-1150-02MI
Dim: 26mm ID Slip Ring Cover
Note: Similar to IM280 except IM280 has different circuitry.
Similar to IM285 except IM285 has 30mm ID slip ring cover.
Components:
TRI271 Repair Circuit

ALANKO 700379
AS-PL ARE5018
CASCO CRE35145AS
ERA 215535
LAUBER CQ1010406
MESSMER 215535
MOBILETRON VR-H2009-33 VRH200933
PARTS-MALL PXPBG-003 PXPBG003
PowerMax 1112991, 81112991
SANDO SRE35145.0 SRE351450
STANDARD VR608
WAIglobal IM837
AIRTEX / WELLS 1V1485

MAZDA E-SERIE Bus (SR1) 1984/01 - 1994/05
MAZDA B-SERIE (UN) 1998/11 - 2006/11
