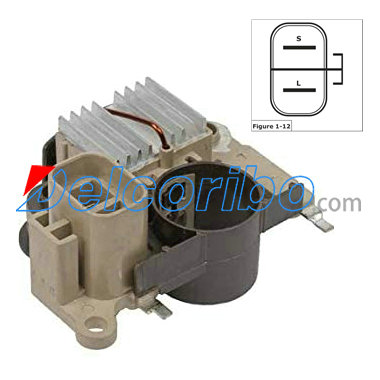

Mazda JE15-18-W70A, JE1518W70A Voltage Regulator

A-Circuit
S-L
Voltage Set Point 14.5V

IM280
(Ref# 35-8324)
Regulator / Brush Holder Assy.
12 Volt, A-Circuit, S-L Terminals, 14.5 Vset
For: Mitsubishi IR/IF Alternators
Used On: (1998-89) Mazda
Replaces: Mazda JE15-18-W70A, JE1518W70A, Mitsubishi A866X17072 (regulator
stamped: 170)
Unit Nos: Mitsubishi A2T13977, A2T18874, A2T19677, A2T19877, A5T00777
Lester Nos: 13231, 13253, 13282, 13337
WAI Ref. Nos: 1-1150-01MI, 1-1157-01MI, 1-1165-01MI
Dim: 26mm ID Slip Ring Cover
Note: Similar to IM285 except IM285 has 30mm ID slip ring
cover.
Components:
TRI268 Repair Circuit

ALANKO 700379
AS-PL ARE5018
CASCO CRE35129AS, CRE35145AS
ERA 215535
LAUBER CQ1010406
MESSMER 215535
MOBILETRON VR-H2009-33 VRH200933
PARTS-MALL PXPBG-003 PXPBG003
PowerMax 1112991, 81112991
SANDO SRE35129.0 SRE351290, SRE35145.0 SRE351450
WAIglobal IM280
ACDELCO E657A
AIRTEX / WELLS 1V1201
ASHIKA 77-03-314 7703314
JAPANPARTS RE-314 RE314
JAPKO 77314
MDR MAR-9314 MAR9314
STANDARD VR456

MAZDA E-SERIE Bus (SR1) 1984/01 - 1994/05
MAZDA B-SERIE (UN) 1998/11 - 2006/11
