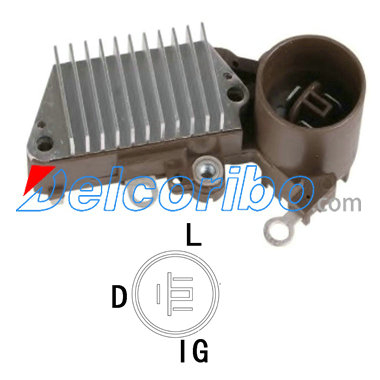

Honda 31150-PE0-003, 31150PE0003 Voltage Regulator

A-Circuit
Voitage Set Point 14.5V
63.5mm Mounting
L Terminal Drives Choke

134447
IN221-1
(Ref# 35-8205-3)
Regulator
12 Volt, A-Circuit, D-IG-L Terminals, 14.5 Vset
For: Nippondenso IR/IF Alternators
Used On: (1995-84) Chevrolet, Geo, Honda, Isuzu
Replaces: Denso 126000-0430, 126000-1711, 1260000430, 1260001711 GM 94139012, Honda 31150-PE0-003, 31150PE0003 Isuzu 8941390120, MOBILETRON VR-H2005-5H, VRH20055H NEW ERA IVR-511J
Unit Nos: Nippondenso 100211-016, 100211-127, 100211-133, 100211-138, 100211-143, 100211-222, 100211-223, 100211-795, 100211-973, 100211-1270, 100211-1271, 100211016, 100211127, 100211133, 100211138, 100211143, 100211222, 100211223, 100211795, 100211973, 1002111270, 1002111271,
Lester Nos: 13391, 13521, 13569, 14732, 14733, 14757, 14851, 14872, 14940
WAI Ref. Nos: 1-1015-01ND, 1-1237-01ND, 1-1238-01ND, 1-1436-01ND, 1-1883-01ND
Dim: 63.5mm Mtg. Length
Note: L-terminal is an output terminal.
Not interchangeable with IN219 where L-terminal is not an output
terminal.
Similar to IN435 except IN435 w/ LRC feature.
Components:
TRI221 Repair Circuit

AINDE H-2005-5 H20055, H-2005-4 H20054
ALANKO 700341, 700411
AS-PL ARE6004
CASCO CRE40105AS, CRE40101AS
ERA 216031, 215648, 215649
HITACHI 132975, 132976
LAUBER CQ1010044
MAGNETI MARELLI 940016082900, 940016083200
MESSMER 216031, 215648, 215649
MOBILETRON VR-H2005-5H VRH20055H, VR-H2005-7A VRH20057A, VR-H2005-4A VRH20054A
NPS H512A04, H512A02
PowerMax 1112490, 81112490
SANDO SRE40105.0 SRE401050, SRE40101.0 SRE401010
WAIglobal IN221
ACDELCO E628A
AIRTEX / WELLS 1V1073, 1V1071
PARTS-MALL PXPBF-013 PXPBF013
STANDARD VR406
ASHIKA 77-04-402 7704402
JAPANPARTS RE-402 RE402
JAPKO 77402
MDR MAR-9402 MAR9402
BERU GER069

HONDA CIVIC III Saloon (AM, AK, AU) 1983/10 - 1987/10
HONDA CIVIC I Shuttle (AN, AR) 1983/08 - 1987/12
HONDA CRX I (AF, AS) 1983/10 - 1987/10
HONDA CIVIC III Hatchback (AL, AJ, AG, AH) 1983/10 - 1987/10
