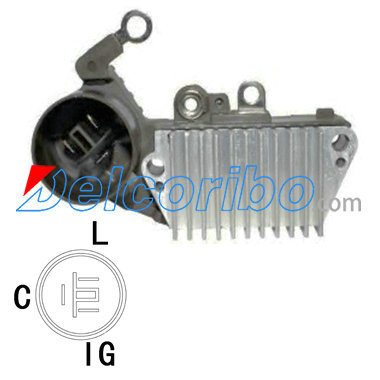

Honda 31150-PE0-921, 31150PE0921 Voltage Regulator

A-Circuit
Voitage Set Point 14.5V
63.5mm Mounting
L Terminal Drives Choke

132856
IN222
(Ref# 35-8209)
Regulator
12 Volt, A-Circuit, C-IG-L Terminals, 14.5 Vset
For: Nippondenso IR/IF Alternators
Used On: (1989-84) Honda, Isuzu
Replaces: Honda 31150-PE0-921, 31150PE0921 Isuzu 8-94337-585-0, 8943375850, Nippondenso 126000-0440, 126000-1310, 126000-0440, 1260000440, 1260001310, 1260000440
, MOBILETRON VR-H2005-6H , VRH20056H, NEW ERA IVR-512
Unit Nos: Nippondenso 100211-126, 100211-221, 100211-372, 100211-1260, 100211-1261, 100211-1310, 100211-2340, 100211-3580, 100211-3850, 100211-3860, 100211-3910, 100211-7012, 100211126, 100211221, 100211372, 1002111260, 1002111261, 1002111310, 1002112340, 1002113580, 1002113850, 1002113860, 1002113910, 1002117012,
Lester Nos: 14739, 14755, 14852
WAI Ref. Nos: 1-1019-01ND, 1-1240-01ND
Dim: 63.5mm Mtg. Length
Note: L-terminal is an output terminal.
Components:
TRI222 Repair Circuit

ALANKO 700412
AS-PL ARE6018
CASCO CRE40114AS
ERA 215651
LAUBER CQ1010208
MAGNETI MARELLI 940016082800
MESSMER 215651
MOBILETRON VR-H2005-6H VRH20056H
PowerMax 1115917, 81115917
SANDO SRE40114.0 SRE401140
WAIglobal IN222
ACDELCO E652, E628A
ASHIKA 77-04-405 7704405
JAPANPARTS RE-405 RE405
JAPKO 77405
MDR MAR-9405 MAR9405
NPS H512A02
PARTS-MALL PXPBF-027 PXPBF027
STANDARD VR406

HONDA CIVIC III Saloon (AM, AK, AU) 1983/10 - 1987/10
HONDA CIVIC I Shuttle (AN, AR) 1983/08 - 1987/12
HONDA CRX I (AF, AS) 1983/10 - 1987/10
HONDA CIVIC III Hatchback (AL, AJ, AG, AH) 1983/10 - 1987/10
ROVER 200 (XH) 1985/03 - 1989/09
