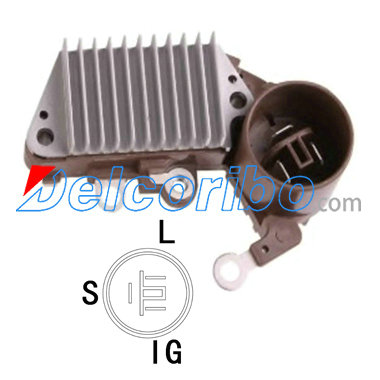

Daihatsu 27700-87704-000, 2770087704000 Voltage Regulator

A-Circuit
Voitage Set Point 14.5V
57.5mm Mounting
L Terminal Drives Choke

132855
IN250
(Ref# 35-8217)
Regulator
12 Volt, A-Circuit, S-IG-L Terminals, 14.5 Vset
For: Nippondenso IR/IF Alternators
Used On: (1992-87) Daihatsu, Toyota
Replaces: Daihatsu 27700-87704-000, 2770087704000, Nippondenso 126000-0550, 126000-1570, 126000-1550, 126000-0980, 126000-0901, 126000-0900, 126000-0550, 1260000550, 1260001570, 1260001550, 1260000980, 1260000901, 1260000900, 1260000550, Toyota 27700-10050, 27700-10080, 27700-66010, 940038087, 2770010050, 2770010080, 2770066010, 940038087, MOBILETRON VR-H2005-23A, VRH200523A, NEW ERA IVR-518
Unit Nos: Daihatsu 27060-87706-000, 27060-87710-000, 2706087706000, 2706087710000, Nippondenso 100211-152, 100211-156, 100211-162, 100211-416, 100211-417, 100211-432, 100211-435, 100211-441, 100211-686, 100211-687, 100211152, 100211156, 100211162, 100211416, 100211417, 100211432, 100211435, 100211441, 100211686, 100211687, Toyota 27060-10070, 27060-10071, 27060-11080, 27060-72080, 27060-72081, 27060-72110, 27060-72111, 27060-72140, 27060-87710, 100211-1280, 100211-1520, 100211-1560, 100211-1600, 100211-1601, 100211-1620, 100211-4160, 100211-4170, 100211-4280, 2706010070, 2706010071, 2706011080, 2706072080, 2706072081, 2706072110, 2706072111, 2706072140, 2706087710, 1002111280, 1002111520, 1002111560, 1002111600, 1002111601, 1002111620, 1002114160, 1002114170, 1002114280,
Lester Nos: 13239, 13390, 14843
WAI Ref. Nos: 1-1085-01ND, 1-1260-01ND, 1-1261-01ND
Dim: 57.5mm Mtg. Length
Note: L-terminal is an output terminal.
Components:
TRI250 Repair Circuit

ACDELCO E607A
AIRTEX / WELLS 1V1306
ALANKO 700408
ASHIKA 77-02-218 7702218
AS-PL ARE6008
BERU GER071
CASCO CRE40107AS, CRE40137AS
ERA 215660
JAPANPARTS RE-218 RE218
JAPKO 77218
LAUBER CQ1010342
MDR MAR-9218 MAR9218
MESSMER 215660
MOBILETRON VR-H2005-23A VRH200523A
PARTS-MALL PXPBF-010 PXPBF010
PowerMax 1110838, 81110838
SANDO SRE40107.0 SRE401070, SRE40137.0 SRE401370
STANDARD VR477
WAIglobal IN250, IN250SE, IN250SE189

DAIHATSU CHARADE IV (G200, G202) 1993/01 - 2000/09
DAIHATSU CHARADE III (G100, G101, G102) 1987/01 - 1993/07
DAIHATSU CHARADE III Saloon (G102) 1987/01 - 1993/07
TOYOTA COROLLA (_E8_) 1983/06 - 1989/06
TOYOTA COROLLA (_E9_) 1987/05 - 1994/09
TOYOTA COROLLA Compact (_E9_) 1987/05 - 1995/10
TOYOTA COROLLA Liftback (_E8_) 1983/06 - 1989/05
TOYOTA COROLLA Liftback (_E9_) 1987/07 - 1995/10
TOYOTA COROLLA Station Wagon (_E9_) 1987/12 - 1992/12
TOYOTA STARLET (_P7_) 1984/10 - 1989/12
TOYOTA STARLET (_P8_) 1989/12 - 1996/03
TOYOTA COROLLA FX Compact (E8B) 1984/08 - 1988/05
