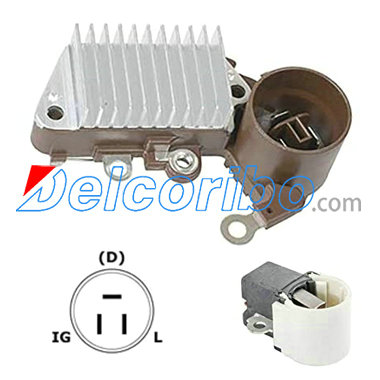

SUZUKI Voltage Regulator 8-94455-160-0, 8944551600

A-Circuit
Voitage Set Point 14.5V
57.5mm Mounting
L Terminal Drives Choke

132860
IN251
(Ref# 35-8216)
Regulator
12 Volt, A-Circuit, D-IG-L Terminals, 14.5 Vset
For: Nippondenso IR/IF Alternators
Used On: (1995-85) Chevrolet, Geo, Isuzu, Suzuki
Replaces: GM 94455160, Isuzu 8-94455-160-0, 8944551600, Nippondenso 126000-0850, 126000-1370, 126000-0880, 126000-0850, 1260000850, 1260001370, 1260000880, 1260000850 NEW ERA IVR-517, MOBILETRON VR-H2005-24, VRH200524
Unit Nos: Nippondenso 100211-413, 100211-426, 100211-660, 101211-202, 100211-1570, 100211-1571, 100211-4140, 100211-4141, 100211-4710, 100211-6600, 100211-6720, 100211-6990, 101211-1240, 100211413, 100211426, 100211660, 101211202, 1002111570, 1002111571, 1002114140, 1002114141, 1002114710, 1002116600, 1002116720, 1002116990, 1012111240,
Lester Nos: 13316, 13522, 14733, 14940
WAI Ref. Nos: 1-1238-01ND, 1-1881-01ND, 1-1968-01ND
Dim: 57.5mm Mtg. Length
Note: L-terminal is an output terminal.
Components:
TRI251 Repair Circuit

AINDE H-2005-24 H200524
ALANKO 700409
AS-PL ARE6009
CASCO CRE40118AS
ERA 215919
LAUBER CQ1010292
MAGNETI MARELLI 940016081600
MESSMER 215919
MOBILETRON VR-H2005-24 VRH200524
PowerMax 1115652, 81115652
SANDO SRE40118.0 SRE401180
WAIglobal IN251
PARTS-MALL PXPBF-008 PXPBF008

SUBARU JUSTY III (G3X) 2003/09 - /
SUZUKI SWIFT II Hatchback (EA, MA) 1989/03 - 2005/12
SUZUKI SWIFT II Saloon (AH, AJ) 1989/03 - 2001/05
SUZUKI SWIFT Convertible (SF413) 1991/09 - 1996/10
SUZUKI ALTO (HA11) 1994/09 - 1998/09
SUZUKI ALTO (HA12, HA23) 1998/10 - 2004/08
TOYOTA COROLLA Liftback (_E8_) 1983/06 - 1989/05
