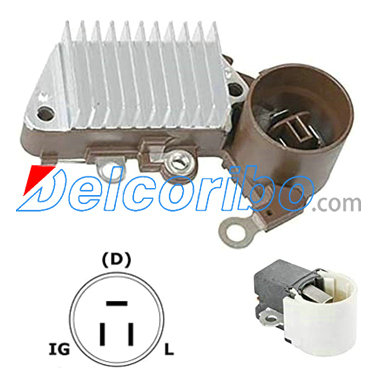

SUZUKI Voltage Regulator 27700-87601-000, 2770087601000

A-Circuit
Voitage Set Point 14.5V
57.5mm Mounting

133257
IN253
(Ref# 35-8215-1)
Regulator
12 Volt, A-Circuit, D-IG-L Terminals, 14.5 Vset
For: Nippondenso IR/IF Alternators
Used On: (1995-86) Daihatsu, Suzuki
Replaces: Daihatsu 27700-87601-000, 2770087601000 Nippondenso 126000-0720, 126000-0721, 126000-2810, 126000-2720, 126000-2120, 126000-1330, 126000-0951, 126000-0950, 1260000720, 1260000721, 1260002810, 1260002720, 1260002120, 1260001330, 1260000951, 1260000950, Suzuki 32500-86510, 32500-86511, 3250086510, 3250086511, MOBILETRON VR-H2005-26A, VRH200526A NEW ERA IVR-517 , 1260001950
Unit Nos: Nippondenso 100211-155, 100211-157, 100211-407, 100211-414, 100211-671, 100211-672, 100211-699, 100211-919, 100211-932, 100211-93, 100211-1550, 100211-1570, 100211-1571, 100211-4070, 100211-4130, 100211-4371, 100211-4372, 100211-6720, 100211-9062, 100211155, 100211157, 100211407, 100211414, 100211671, 100211672, 100211699, 100211919, 100211932, 10021193, 1002111550, 1002111570, 1002111571, 1002114070, 1002114130, 1002114371, 1002114372, 1002116720, 1002119062,
Lester Nos: 13214, 13255, 13414, 14684, 14870
WAI Ref. Nos: 1-1228-01ND, 1-1230-01ND, 1-1230-02ND, 1-1969-01ND
Dim: 57.5mm Mtg. Length
Note: L-terminal is not an output terminal.
Components:
TRI253 Repair Circuit

ACDELCO D605A, D611A
AIRTEX / WELLS 1V1072
ASHIKA 77-08-803 7708803
JAPANPARTS RE-803 RE803
JAPKO 77803
MDR MAR-9803 MAR9803
PARTS-MALL PXPBF-025 PXPBF025
STANDARD VR468
WAIglobal IN253
AINDE H-2005-26 H200526
ALANKO 700391
AS-PL ARE6019
CASCO CRE40120AS
HITACHI 132945
LAUBER CQ1010111
MAGNETI MARELLI 940016081800
MOBILETRON VR-H2005-26A VRH200526A
PowerMax 1116104, 81116104
SANDO SRE40120.0 SRE401200

SUZUKI SWIFT II Hatchback (EA, MA) 1989/03 - 2005/12
SUZUKI SWIFT II Saloon (AH, AJ) 1989/03 - 2001/05
SUZUKI SWIFT Convertible (SF413) 1991/09 - 1996/10
SUZUKI SAMURAI (SJ) 1988/11 - 2004/12
SUZUKI SJ 413 1984/09 - 1990/08
SUZUKI SWIFT I (AA) 1983/10 - 1989/12
