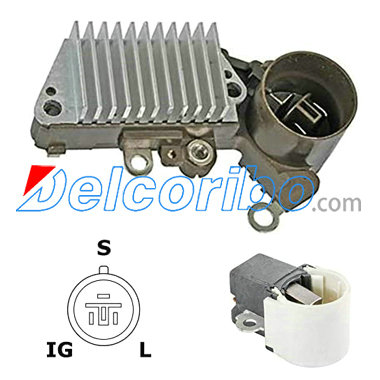

Nippondenso 126000-1260, 126000-1500 Voltage Regulator

Nippondenso 126000-1260, 126000-1500 Voltage Regulator

Nippondenso 126000-1260, 126000-1500 Voltage Regulator
VRT1510  Voltage Regulators
A-Circuit
Voitage Set Point 14.5V
63.5mm Mounting
135731
IN438
(Ref# 35-8227)
Regulator
12 Volt, A-Circuit, S-IG-L Terminals, 14.6 Vset, w/ LRC
For: Nippondenso IR/IF Alternators
Used On: (1994-91) Lexus, Toyota
Replaces: Nippondenso 126000-1260, 126000-1500, 126000-1400, 126000-1270, 126000-1260, 126000-1190, Toyota 27700-46030, 27700-46040, 2770072090 , 1260001260, 1260001500, 1260001400, 1260001270, 1260001260, 1260001190, Toyota2770046030, 2770046040, 2770072090, NEW ERA IVR-5008, MOBILETRON VR-H2005-18A, VRH200518A
Unit Nos: Nippondenso 100211-536, 100211-618, 100211-630, 100211-633, 100211-634, 100211-636, 100211-641, 100211-642, 100211-747, 100211-791, 100211-793, 100211-856, 100211-857, 100211-866, 100211-881, 100211-882, 100211-883, 100211-887, 100211-978, 100211-979, 100211-989, 101211-522, 101211-536, 101211-875, 100211-3540, 100211-3740, 100211536, 100211618, 100211630, 100211633, 100211634, 100211636, 100211641, 100211642, 100211747, 100211791, 100211793, 100211856, 100211857, 100211866, 100211881, 100211882, 100211883, 100211887, 100211978, 100211979, 100211989, 101211522, 101211536, 101211875, 1002113540, 1002113740,
Lester Nos: 12195, 13338, 13389, 13396, 13397, 13407, 13410, 13411, 13440, 13454, 13498, 13525
WAI Ref. Nos: 1-1591-01ND, 1-1596-01ND, 1-1605-01ND, 1-1835-01ND, 1-1836-01ND, 1-1857-01ND, 1-1860-01ND, 1-1861-01ND, 1-1884-01ND, 1-1893-01ND, 1-1964-01ND, 1-1965-01ND, 1-2008-01ND, 1-2411-01ND
Dim: 63.5mm Mtg. Length
Note: L-terminal is not an output terminal.
AS-PL ARE6084
MOBILETRON VR-H2005-18A VRH200518A
PARTS-MALL PXPBF-029 PXPBF029
PowerMax 1116414, 81116414
STANDARD VR496
WAIglobal IN438HD-B50 IN438HDB50
WAIglobal IN438, IN438HD
CASCO CRE40117AS
LAUBER CQ1010313
MAGNETI MARELLI 940016083400
SANDO SRE40117.0 SRE401170
