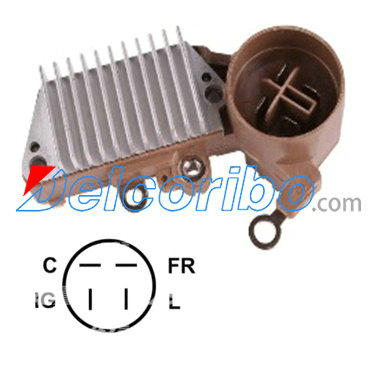

HONDA Voltage Regulator 126000-1410, 126000-1880, 126000-1860

A-Circuit
C-FR-IG-L
63.5mm Mounting

132859
IN431
(Ref# 35-8232)
Regulator
12 Volt, A-Circuit, C-FR-IG-L Terminals, 14.5 Vset
For: Nippondenso IR/IF Alternators
Used On: (1996-93) Honda
Replaces: Nippondenso 126000-1410, 126000-1880, 126000-1860, 126000-1720, 126000-1700, 126000-1410, 126000-1300, 126000-1030, USI 71-30006, 1260001410, 1260001880, 1260001860, 1260001720, 1260001700, 1260001410, 1260001300, 1260001030, USI7130006
Unit Nos: Nippondenso 100211-874, 100211-3590, 100211-3600, 100211-3660, 100211-3690, 100211-3790, 100211-3870, 100211-3880, 100211-3890, 100211-3930, 100211874, 1002113590, 1002113600, 1002113660, 1002113690, 1002113790, 1002113870, 1002113880, 1002113890, 1002113930
Lester Nos: 13506
WAI Ref. Nos: 1-1970-01ND
Dim: 63.5mm Mtg. Length
Note: L-terminal is an output terminal.

ALANKO 700366, 700440
AS-PL ARE6011, ARE6022
CASCO CRE40122AS, CRE40109AS
LAUBER CQ1010465
MAGNETI MARELLI 940016082400
MOBILETRON VR-H2005-10 VRH200510
PowerMax 81115127
SANDO SRE40122.0 SRE401220, SRE40109.0 SRE401090
WAIglobal IN224, IN431
ERA 216076
MESSMER 216076

HONDA ACCORD IV (CB) 1989/11 - 1993/10
HONDA CIVIC IV Hatchback (EC, ED, EE) 1987/09 - 1993/10
HONDA CRX II (ED, EE) 1987/10 - 1992/02
HONDA CONCERTO (HW) 1989/08 - 1996/10
HONDA ACCORD IV Aerodeck (CB) 1991/01 - 1993/12
HONDA PRELUDE IV (BB) 1991/12 - 1997/02
HONDA CIVIC II Shuttle (EE) 1988/01 - 1995/02
HONDA CONCERTO Saloon (HWW) 1989/08 - 1995/05
