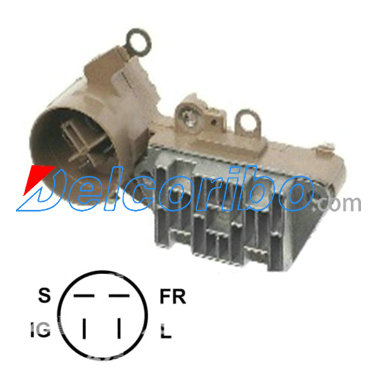

HONDA Voltage Regulator 31150-PD6-024, 31150PD6024

A-Circuit
N/C-FR-IG-L
63.5mm Mounting

132645
IN444
Regulator
12 Volt, A-Circuit, S-FR-IG-L Terminals, 14.5 Vset
For: Nippondenso IR/IF Alternators
Used On: (1991-85) Acura, Honda, Sterling
Replaces: Honda 31150-PD6-024, 31150PD6024 Nippondenso 126000-1060, 126000-1170, 126000-1060, 126000-0540, 1260001060, 1260001170, 1260001060, 1260000540
Unit Nos: Nippondenso 100211-213, 100211-214, 100211-255, 100211-331, 100211-707, 100211-750, 100211-781, 100211-2010, 100211-2011, 100211-2130, 100211-2140, 100211-2550, 100211-3310, 100211-3311, 100211-6150, 100211-6160, 100211213, 100211214, 100211255, 100211331, 100211707, 100211750, 100211781, 1002112010, 1002112011, 1002112130, 1002112140, 1002112550, 1002113310, 1002113311, 1002116150, 1002116160
Lester Nos: 13294, 14680, 14931
WAI Ref. Nos: 1-1003-01ND, 1-1008-01ND, 1-1023-01ND, 1-1410-01ND, 1-1411-01ND
Dim: 63.5mm Mtg. Length
Note: L-terminal is an output terminal.

ACDELCO E657, E629A
ALANKO 700364
AS-PL ARE6006, ARE6024
CASCO CRE40127AS, CRE40124AS
HITACHI 132941
LAUBER CQ1010261
MAGNETI MARELLI 940016084500
PowerMax 1111506, 81111506
SANDO SRE40127.0 SRE401270, SRE40124.0 SRE401240
STANDARD VR438
WAIglobal IN444, IN226
ASHIKA 77-04-403 7704403
ASHUKI 1536-3004 15363004
ERA 215655
JAPANPARTS RE-403 RE403
JAPKO 77403
MDR MAR-9403 MAR9403
MESSMER 215655
MOBILETRON VR-H2005-9A VRH20059A
PARTS-MALL PXPBF-017 PXPBF017

HONDA ACCORD III (CA) 1985/11 - 1989/12
HONDA LEGEND I Coupe (KA3) 1987/10 - 1991/03
HONDA LEGEND I (HS, KA) 1986/01 - 1991/03
HONDA PRELUDE III (BA) 1986/04 - 1992/01
HONDA ACCORD III Aerodeck (CA) 1985/11 - 1989/12
