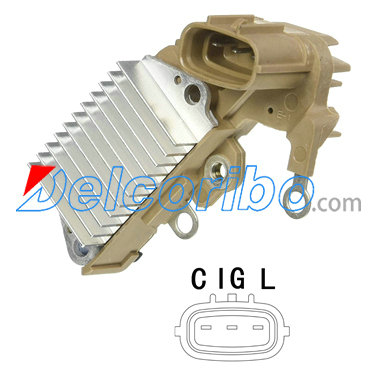

126000-2150, 126000-2151, 126000-2150 for ISUZU Voltage Regulator

A-Circuit
Voitage Set Point 14.5V
63.5mm Mounting
L Terminal Drives Choke

234731
IN215
Regulator
12 Volt, A-Circuit, C-IG-L Terminals, 14.5 Vset
For: Nippondenso IR/IF Alternators
Used On: (1997-96) Acura, Isuzu
Replaces: Nippondenso 126000-2150, 126000-2151, 126000-2150, 1260002150, 1260002151, 1260002150 NEW ERA IVR-546, MOBILETRON VR-H2005-77, VRH200577
Unit Nos: Isuzu 8-97109-780-0, 8-97109-780-1, 8971097800, 8971097801 Nippondenso 101211-422, 101211-0840, 101211-4220, 101211422, 1012110840, 1012114220
Lester Nos: 13739
WAI Ref. Nos: 1-2120-01ND
Dim: 63.5mm Mtg. Length
Note: L-terminal is an output terminal

AS-PL ARE6060
CASCO CRE40102AS
ERA 215645
LAUBER CQ1010424
MAGNETI MARELLI 940016085000
MESSMER 215645
MOBILETRON VR-H2005-77 VRH200577
PowerMax 1113544, 81113544
SANDO SRE40102.0 SRE401020
WAIglobal IN215

ISUZU TROOPER (UB) 1991/08 - 2000/04
