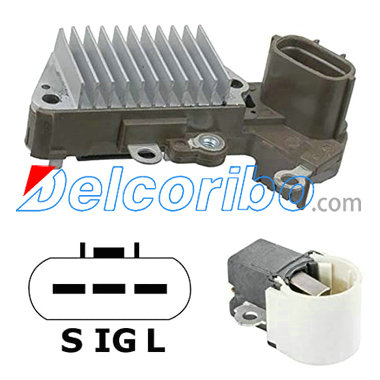

1260001660, 1260001640, 1260001580 for TOYOTA Voltage Regulator

A-Circuit
Voitage Set Point 14.5V
63.5mm Mounting

135734
IN439
(Ref# 35-8238-1)
Regulator
12 Volt, A-Circuit, S-IG-L Terminals, 14.6 Vset, w/ LRC
For: Nippondenso IR/IF Alternators
Used On: (2002-93) Chevrolet, Geo, Lexus, Toyota
Replaces: GM 94854171, 94857219, Nippondenso 126000-1580, 126000-7110, 126000-7100, 126000-2290, 126000-1670, 126000-1660, 126000-1640, 126000-1580, 126000-1640*, 126000-1670**, 1260001580, 1260007110, 1260007100, 1260002290, 1260001670, 1260001660, 1260001640, 1260001580, 1260001640*, 1260001670**, Toyota 27700-35040**, 27700-46050*, 27700-74030, 27700-74040, 27700-75030, 2770035040**, 2770046050*, 2770074030, 2770074040, 2770075030 NEW ERA IVR-524, MOBILETRON VR-H2005-31A, VRH200531A
Unit Nos: Nippondenso 100211-502, 100211-511, 100211-639, 100211-644, 100211-648, 100211-899, 101211-005, 101211-006, 101211-007, 101211-010, 101211-012, 101211-014, 101211-019, 101211-021, 101211-027, 101211-038, 101211-039, 101211-042, 101211-051, 101211-062, 101211-500, 101211-501, 101211-502, 101211-508, 101211-509, 101211-511, 101211-512, 101211-513, 101211-517, 101211-523, 101211-524, 101211-537, 101211-538, 101211-546, 101211-554, 101211-555, 101211-561, 101211-564, 101211-566, 101211-572, 101211-575, 101211-576, 101211-577, 101211-590, 101211-597, 101211-639, 101211-706, 101211-711, 101211-716, 101211-718, 101211-751, 101211-951, 101211-996, 102211-124, 102211-509, 100211-5020, 100211-5200, 100211-5210, 100211-5230, 100211-5250, 100211-5251, 100211-5260, 100211-5270, 100211-6440, 100211502, 100211511, 100211639, 100211644, 100211648, 100211899, 101211005, 101211006, 101211007, 101211010, 101211012, 101211014, 101211019, 101211021, 101211027, 101211038, 101211039, 101211042, 101211051, 101211062, 101211500, 101211501, 101211502, 101211508, 101211509, 101211511, 101211512, 101211513, 101211517, 101211523, 101211524, 101211537, 101211538, 101211546, 101211554, 101211555, 101211561, 101211564, 101211566, 101211572, 101211575, 101211576, 101211577, 101211590, 101211597, 101211639, 101211706, 101211711, 101211716, 101211718, 101211751, 101211951, 101211996, 102211124, 102211509, 1002115020, 1002115200, 1002115210, 1002115230, 1002115250, 1002115251, 1002115260, 1002115270, 1002116440
Lester Nos: 13457, 481, 482, 492, 495, 499, 500, 501, 502, 503, 537, 546, 551, 553, 556, 557, 668, 673, 711, 754, 756
WAI Ref. Nos: 1-1763-01ND, 1-1838-01ND, 1-1856-01ND, 1-1866-01ND, 1-1892-01ND, 1-1931-01ND, 1-1976-01ND, 1-1978-01ND, 1-1979-01ND, 1-1980-01ND, 1-1981-01ND, 1-1982-01ND, 1-1983-01ND, 1-1984-01ND, 1-2080-01ND, 1-2145-01ND, 1-2167-01ND, 1-2211-01ND, 1-2406-01ND
Dim: 63.5mm Mtg. Length
Note: L-terminal is not an output terminal.
*Nippondenso 126000-1640 14.1 Vset
**Nippondenso 126000-1670 wo/ LRC
Components:
TRI439 Repair Circuit

AS-PL ARE6002, ARE6002M, ARE6002T, ARE6025
CASCO CRE40128AS
ERA 215674
HELLA 5DR 004 244-171 5DR004244171
HITACHI 132890
LAUBER CQ1010037
MAGNETI MARELLI 940016085200
MESSMER 215674
MOBILETRON VR-H2005-31A VRH200531A
PowerMax 1115961, 81115961
SANDO SRE40128.0 SRE401280
STANDARD VR498
WAIglobal IN439
PARTS-MALL PXPBF-007 PXPBF007

TOYOTA RAV 4 I (SXA1_) 1994/01 - 2000/09
TOYOTA CAMRY (_CV1_, _XV1_, _V1_) 1991/06 - 1997/09
TOYOTA CAMRY Station Wagon (_XV1_, _CV1_, _V10) 1991/06 - 1997/08
TOYOTA CARINA E Saloon (_T19_) 1992/04 - 1997/09
TOYOTA CARINA E (_T19_) 1992/04 - 1997/09
TOYOTA CARINA E Sportswagon (_T19_) 1992/02 - 1997/09
TOYOTA PICNIC (_XM10) 1996/05 - 2001/12
TOYOTA CAMRY (_CV2_, _XV2_) 1996/08 - 2001/11
TOYOTA RAV 4 I Cabrio (SXA1_) 1997/12 - 2000/06
