1260007100, 1260002290, 1260001670 for HONDA Voltage Regulator

A-Circuit
Voitage Set Point 14.5V
63.5mm Mounting

135734
IN440
(Ref# 35-8236)

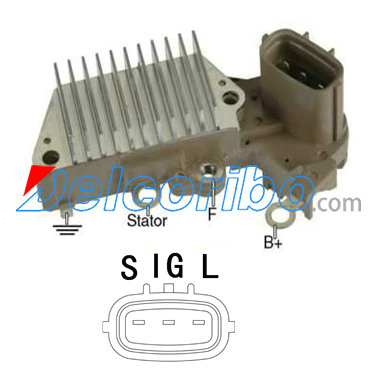

Regulator
12 Volt, A-Circuit, S-IG-L Terminals, 14.0 Vset
For: Nippondenso IR/IF Alternators
Used On: (1995-93) Toyota
Replaces: Nippondenso 126000-7100, 126000-7110, 126000-7100, 126000-2290, 126000-1670, 126000-1660, 126000-1640, 126000-1580, 1260007100, 1260007110, 1260007100, 1260002290, 1260001670, 1260001660, 1260001640, 1260001580 Toyota 27700-65010, 2770065010 MOBILETRON VR-H2005-35, VRH200535
Unit Nos: Nippondenso 101211-013, 101211-030, 101211-701, Toyota 27060-17180, 27060-65040, 100211-5020, 100211-5200, 100211-5210, 100211-5230, 100211-5250, 100211-5251, 100211-5260, 100211-5270, 100211-6440, 101211013, 101211030, 101211701, Toyota2706017180, 2706065040, 1002115020, 1002115200, 1002115210, 1002115230, 1002115250, 1002115251, 1002115260, 1002115270, 1002116440
Lester Nos: 13496
WAI Ref. Nos: 1-1863-01ND
Dim: 63.5mm Mtg. Length
Note: L-terminal is not an output terminal.

AIRTEX / WELLS 1V1069
AS-PL ARE6002, ARE6002M, ARE6002T, ARE6025, ARE6033, ARE6085
HITACHI 132890
LAUBER CQ1010037
MAGNETI MARELLI 940016085200
MOBILETRON VR-H2005-31A VRH200531A, VR-H2005-35 VRH200535, VR-H2005-46A VRH200546A
PARTS-MALL PXPBF-022 PXPBF022
PowerMax 1115961, 81115961
WAIglobal IN440
CASCO CRE40129AS
ERA 215675, 215684
MESSMER 215675, 215684
SANDO SRE40129.0 SRE401290

HONDA CIVIC V Saloon (EG, EH) 1991/10 - 1995/12
HONDA CIVIC V Coupe (EJ) 1993/08 - 1996/03
HONDA CRX III (EH, EG) 1992/03 - 1998/12
HONDA CIVIC V Hatchback (EG) 1991/10 - 1995/11
