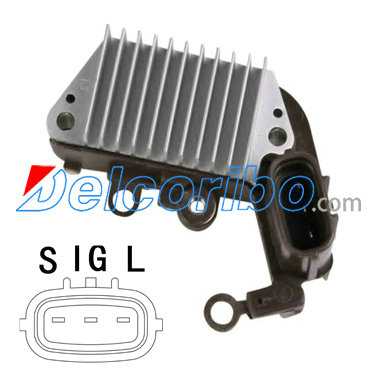

Toyota 27700-11060, 2770011060 Voltage Regulator

A-Circuit
Voitage Set Point 14.5V
57.5mm Mounting
L Terminal Drives Choke

138662
IN257
(Ref# 35-8242)
Regulator
12 Volt, A-Circuit, S-IG-L Terminals, 14.5 Vset
For: Nippondenso IR/IF Alternators
Used On: (1998-93) Toyota
Replaces: Nippondenso 126000-1630, 126000-1630, 1260001630, 1260001630 Toyota 27700-11060, 2770011060 MOBILETRON VR-H2005-32A, NEW ERA IVR-5003
Unit Nos: Nippondenso 101211-213, 101211213 Toyota 27060-11250, 101211-2130, 101211-3030, 2706011250, 1012112130, 1012113030
Lester Nos: 13485
WAI Ref. Nos: 1-1840-01ND
Dim: 57.5mm Mtg. Length
Note: L-terminal is an output terminal.
Components:
TRI257 Repair Circuit

ACDELCO E640C
AIRTEX / WELLS 1V1287
AS-PL ARE6031
CASCO CRE40108AS
ERA 215665
LAUBER CQ1010471
MESSMER 215665
MOBILETRON VR-H2005-32A VRH200532A
PARTS-MALL PXPBF-006 PXPBF006
PowerMax 1112859, 81112859
SANDO SRE40108.0 SRE401080
STANDARD VR563
WAIglobal IN257
MAGNETI MARELLI 940016086000

HONDA ACCORD III (CA) 1985/11 - 1989/12
HONDA PRELUDE III (BA) 1986/04 - 1992/01
HONDA ACCORD III Aerodeck (CA) 1985/11 - 1989/12
