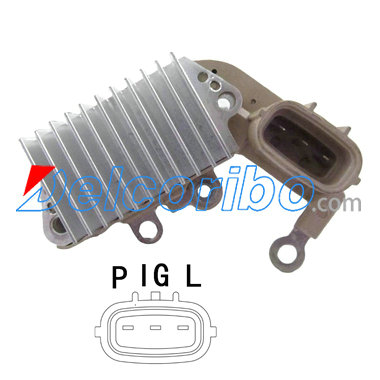

Nippondenso 126000-1800, 126000-1800, 1260001800 Voltage Regulator

A-Circuit
Voitage Set Point 14.5V
63.5mm Mounting

138146
IN450
(Ref# 35-8246)
Regulator
12 Volt, A-Circuit, P-IG-L Terminals, 14.5 Vset
For: Nippondenso IR/IF Alternators
Used On: Caterpillar
Replaces: Nippondenso 126000-1800, 126000-1800, 1260001800, 1260001800 MOBILETRON VR-H2005-60, VRH200560
Unit Nos: Caterpillar 105-2811, 105-2812, 1052811, 1052812 Nippondenso 101211-224, 101211-231, 100211-2310, 100211-4730, 101211224, 101211231, 1002112310, 1002114730
Lester Nos: 12346
Dim: 57.5mm Mtg. Length
Note: L-terminal is not an output terminal.

AS-PL ARE6030
CASCO CRE40113AS
ERA 215682
LAUBER CQ1010126
MESSMER 215682
MOBILETRON VR-H2005-60 VRH200560
PowerMax 1114083, 81114083
SANDO SRE40113.0 SRE401130
WAIglobal IN450
