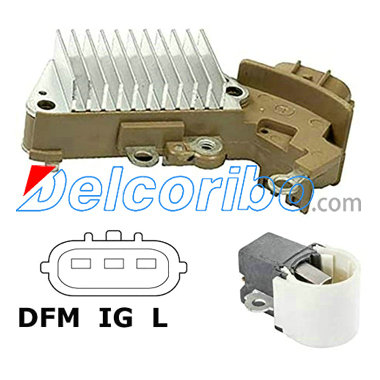

Toyota 27700-21020, 2770021020 Voltage Regulator

A-Circuit
L-IG-FR
Voltage Set Point 14.5V

234091
IN447
Regulator
12 Volt, A-Circuit, M-IG-L (M-Terminal is ‘Frequency’)
Terminals, 14.5 Vset
For: Nippondenso IR/IF Alternators
Used On: (2004-00) Toyota
Replaces: Nippondenso 126000-3130, 126000-3171, 126000-3170, 126000-3131, 126000-3130, 1260003130, 1260003171, 1260003170, 1260003131, 1260003130 Toyota 27700-21020, 2770021020
Unit Nos: Nippondenso 102211-196, 102211-526, 102211-538, Toyota 27060-21010, 27060-21020, 27060-21040, 100211-5380, 100211-5480, 102211-1950, 102211-1951, 102211-1960, 102211-2770, 102211-2780, 102211-5260, 102211-5380, 102211196, 102211526, 102211538, Toyota2706021010, 2706021020, 2706021040, 1002115380, 1002115480, 1022111950, 1022111951, 1022111960, 1022112770, 1022112780, 1022115260, 1022115380
Lester Nos: 13857, 13896
WAI Ref. Nos: 1-2359-01ND, 1-2368-01ND, 1-2408-01ND
Dim: 63.5mm Mtg. Length
Note: L-terminal is not an output terminal.

AS-PL ARE6034
ERA 215680
MESSMER 215680
LAUBER CQ1010294
PowerMax 81114833
WAIglobal IN447, IN447HD

TOYOTA YARIS (SCP1_, NLP1_, NCP1_) 1999/01 - 2005/12
TOYOTA YARIS VERSO (_NLP2_, _NCP2_) 1999/08 - 2005/09
