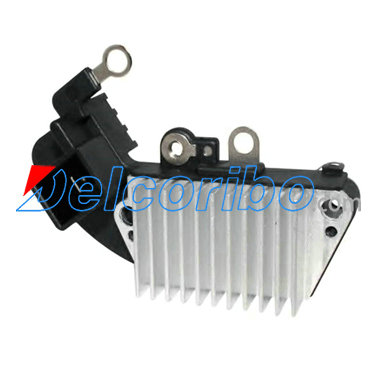

Nippondenso 1260001760, 1260001620, 1260001320 Voltage Regulator

136727
IN443
Regulator
12 Volt, A-Circuit, L-Terminal, 14.4 Vset, 5 sec. LRC
For: Nippondenso IR/IF Alternators
Used On: (1993-92) Volvo 940 Series
Replaces: Nippondenso 126000-1760, 126000-7160, 126000-2790, 126000-1760, 126000-1620, 126000-1320, 126000-1130, 1260001760, 1260007160, 1260002790, 1260001760, 1260001620, 1260001320, 1260001130
Unit Nos: Nippondenso 100211-862, 100211-863, 100211862, 100211863 Volvo 3544118, 3544118-7, 35441187, 3544119, Lester Nos: 13519, 13548, 100211-8370, 100211-8622, 100211-8630, 100211-8631, 100211-8632, 100211-8960, 101211-5570, 101211-5571, 102211-0500, 1002118370, 1002118622, 1002118630, 1002118631, 1002118632, 1002118960, 1012115570, 1012115571, 1022110500
WAI Ref. Nos: 1-1764-01ND, 1-1862-01ND
Dim: 63.5mm Mounting
Note: L-terminal is an output terminal. Similar to IN442 except:
IN442: wo / LRC
IN443: w/ LRC
Features:
Lamp activated w/ lamp latching feature
Battery disconnect protection
Shorted field
lamp circuit protection

AS-PL ARE6078
LAUBER CQ1010430
PowerMax 81116178
ERA 215677
MESSMER 215677
MOBILETRON VR-H2005-34 VRH200534
WAIglobal IN443
