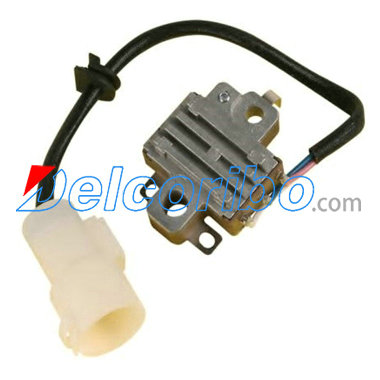

Toyota 27700-64040, 27700-64110 Voltage Regulator

A-Circuit
Voitage Set Point 14.5V
43mm Mounting
A-Circuit
Voitage Set Point 14.5V
43mm Mounting

133526
231197
IN920
IN922
(Ref# 35-8245)
Regulator
12 Volt, A-Circuit, L-S-IG Terminals, 14.3 Vset
For: Nippondenso IR/EF Alternators
Used On: Hino, Toyota Industrial
Replaces: Denso 126000-0920, 126000-1421, 126000-1460, 1260000920, 1260001421, 1260001460 Hino 27700-1740, 277001740 Isuzu 8943426800, Toyota 27700-64040, 27700-64110, 2770064040, 2770064110 MOBILETRON VR-H2005-2, VRH20052
Unit Nos: Nippondenso 100213-075, 100213-076, 100213-081, 100213-092, 100213-095, 100213-096, 100213-098, 100213-121, 100213-142, 100213-145, 100213-150, 100213-275, 121000-275, 121000-502, 100210-1560, 100213-0750, 100213-0760, 100213-0770, 100213-0780, 100213-0790, 100213-0800, 100213-0950, 100213-0960, 100213075, 100213076, 100213081, 100213092, 100213095, 100213096, 100213098, 100213121, 100213142, 100213145, 100213150, 100213275, 121000275, 121000502, 1002101560, 1002130750, 1002130760, 1002130770, 1002130780, 1002130790, 1002130800, 1002130950, 1002130960
Lester Nos: 12214
Dim: 43mm Mtg. Length
Note: IN920 is similar to IN921 except:
IN920: rectangular 3-terminal plug
IN921: round 3-terminal plug

AS-PL ARE6017, ARE6061
ERA 215698, 215699
LAUBER CQ1010336, CQ1010357
MESSMER 215698, 215699
MOBILETRON VR-H2005-2 VRH20052, VR-H2005-2W VRH20052W
PowerMax 81115920, 81111736
WAIglobal IN920, IN921

TOYOTA COROLLA (_E9_) 1987/05 - 1994/09
TOYOTA COROLLA Compact (_E9_) 1987/05 - 1995/10
TOYOTA COROLLA Station Wagon (_E9_) 1987/12 - 1992/12
TOYOTA CAMRY (_V2_) 1986/10 - 1993/02
TOYOTA CAMRY Liftback (_V1_) 1983/01 - 1988/01
TOYOTA CARINA II (_T17_) 1987/12 - 1992/06
TOYOTA CARINA II (_T15_) 1983/10 - 1988/05
