B-Circuit
L-IG
RED--ISOLATION DIODE(+)
BALCK--GROUND
GREEN--FIELD
L-IG
Voltage Set Point 14.5V
131912
M5-181

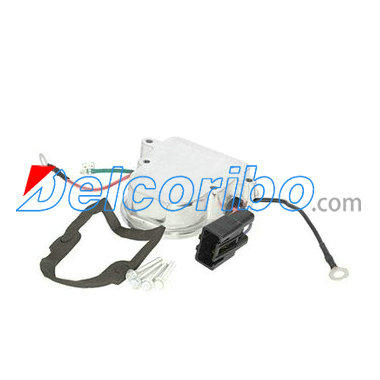

Regulator
12 Volt, B-Circuit, 15.0 Vset
For: Motorola / Prestolite 8HC, 8MR Series Alternators
w/ Isolation Diode
Replaces: Motorola / Prestolite 8RG2010C, 8RG2006, 8RG2001, 105-89, 105-88, 105-69, 105-181, 10589, 10588, 10569, 105181
Servicing:8HC2003P, 8HC2004F, 8HC2007F, 8HC2008F, 8MR2004, 8MR2006, 8MR2007K, 8MR2008P, 8MR2009P, 8MR2010P, 8MR2012P, 8MR2013K
Terminal ID: Plug Type M;Wiring Code 2
Red Isolation Diode (+), Black Ground, Green Field
Note: For adjustable voltage use M5-181A.
WAIglobal M5-181 M5181, M5-181A M5181A
