A-Circuit
Voltage Set Point 14.2V
136457
IX128
(Ref# 35-9305)

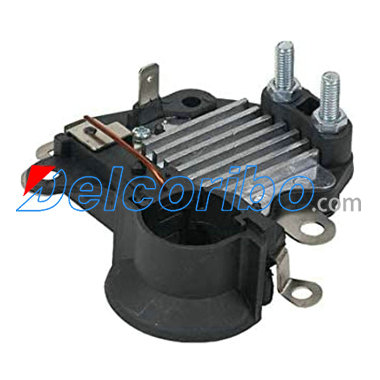

Regulator / Brush Holder Assy.
12 Volt, A-Circuit, 14.2 Vset
For: Marelli IR/IF Alternators
Used On: (1995-91) Land Rover
Replaces: Marelli 28010B, 28018A, Rover STC985, MOBILETRON VR-F121, WOODAUTO VRG36882, WIEGEL RGLFI490013
Unit Nos: Marelli 54022459, 54022469, 54022470, 54022606, 63320228, 63320289, 63320312, 63320313, 63320314, 63320315, A127I, 63320309, 63320310, 63320317, 63321243, 63321285, 63321324, 63321358, 63321421, 63321422, 63321434, 63322469, 63340003, 63340005, 63341243
Lester Nos: 13696, 13697, 13725
WAI Ref. Nos: 1-2003-01MM, 1-2004-01MM, 1-2128-01MM
Note: Long stator bolt
Features:
Soft start
WAIglobal IX128
AINDE F-389 F389
ALANKO 700117
AS-PL ARE4010
ERA 215782
HITACHI 130796
LAUBER CQ1010040
MESSMER 215782
MOBILETRON VR-F121 VRF121
PowerMax 1115003, 81115003
LAND ROVER RANGE ROVER II (LP) 1994/07 - 2002/03
LAND ROVER RANGE ROVER I (AE, AN, HAA, HAB, HAM, HBM, RE, RN) 1970/07 - 1995/12
