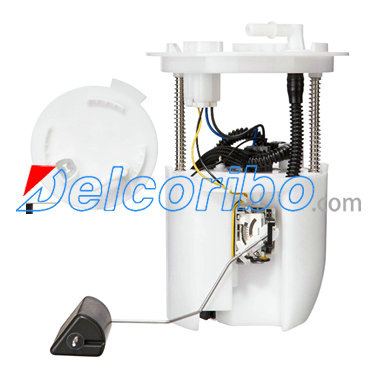

FORD 7T4Z9H307B, 7T4Z9H307H, 7T4Z-9H307-H, 8T4Z9H307B, 8T4Z-9H307-B Electric Fuel Pump Assembly

Description: Fuel Pump Module Assembly
Gaskets Included: Yes
Height (in): 9
Max Pressure Range (Psi): 66.7
Max Free Flow (Gph): 58.8
Resistance Empty (Ohms): 180
Resistance Full (Ohms): 10
Rheostat Range (Ohms): 180-10
Outlet Quantity: 1
Outlet Type: Quick Connect
Outlet Diameter (IN): 3/8
Compatible Fuels: Gas
Wiring Harness Included: No
Hardware Included: Yes
Min Free Flow Rate (Gph): 49.5
Min Pressure Range (Psi): 60.9
Strainer Included: Yes
Pin Count: 4
Pin Shape: Flat
Connector Shape: Trapeze
Connector Gender: Male
Inline Pump: No
In Tank: Yes
Negative Ground: Yes
Pump Type: Turbine
Volts: 12 vDC

FORD 7T4Z9H307B, 7T4Z 9H307 B, 7T4Z9H307H, 7T4Z 9H307 H, 8T4Z9H307B, 8T4Z 9H307 B,

SPECTRA PREMIUM SP2374M
DELPHI FG1206
AIRTEX E2479M
CARTER P76458M

FORD EDGE 2007-2010
LINCOLN MKX 2007-2010
