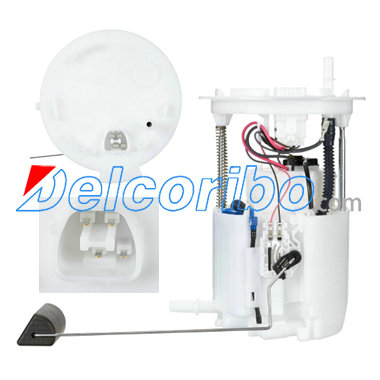

FORD F2GZ9H307E, F2GZ9A299D, F2GZ9H307K, F2GZ9H307N Electric Fuel Pump Assembly

Description: Fuel Pump Module Assembly
Gaskets Included: No
Height (in): 9.7
Max Pressure Range (Psi): 64
Max Free Flow (Gph): 66
Resistance Empty (Ohms): 180
Resistance Full (Ohms): 10
Rheostat Range (Ohms): 180-10
Outlet Quantity: 1
Outlet Type: Quick Connect
Outlet Diameter (IN): 3/8
Compatible Fuels: Gas
Wiring Harness Included: No
Hardware Included: Yes
Min Free Flow Rate (Gph): 57
Min Pressure Range (Psi): 58
Strainer Included: Yes
Pin Count: 4
Pin Shape: Flat
Connector Shape: Trapeze
Connector Gender: Male
Inline Pump: No
In Tank: Yes
Negative Ground: Yes
Pump Type: Turbine
Volts: 12 vDC

FORD F2GZ9H307E, F2GZ 9H307 E, F2GZ9A299D, F2GZ9H307K, F2GZ 9H307 K, F2GZ9H307N, F2GZ 9H307 N,

SPECTRA PREMIUM SP2586M
DELPHI FG2075
MOTORCRAFT PFS1072, PFS1100

FORD EDGE 2015-2018
LINCOLN MKX 2016-2018
