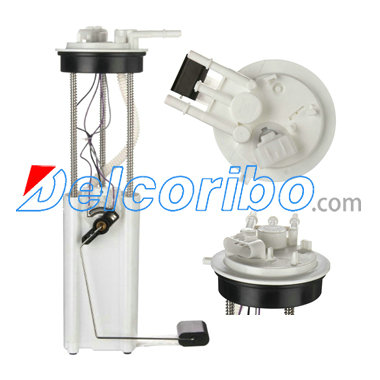

CHEVROLET 15762230, 19179595, 25326141, 25344829, 25348319, 19332076 Electric Fuel Pump Assembly

Description: Fuel Pump Module Assembly
Gaskets Included: Yes
Height (in): 14.1
Max Pressure Range (Psi): 130.5
Max Free Flow (Gph): 57.7
Resistance Empty (Ohms): 40
Resistance Full (Ohms): 250
Rheostat Range (Ohms): 40-250
Inlet Quantity: 1
Inlet Type: Quick Connect
Inlet Diameter (IN): 5/16
Outlet Quantity: 1
Outlet Type: Quick Connect
Outlet Diameter (IN): 3/8
Compatible Fuels: Gas
Wiring Harness Included: Yes
Hardware Included: Yes
Min Free Flow Rate (Gph): 48.6
Min Pressure Range (Psi): 72.5
Strainer Included: Yes
Pin Count: 4
Pin Shape: Flat
Connector Shape: Oval
Connector Gender: Male
Inline Pump: No
In Tank: Yes
Negative Ground: Yes
Pump Type: Turbine
Volts: 12 vDC

15762230, 19179595, 25326141, 25344829, 25348319, P1521M, P579M, 19332076,

SPECTRA PREMIUM SP6235M
BRUTE POWER 1010232
DENSO 9535083
DELPHI FG0159
AIRTEX E3551M
CARTER P74979M
ACDELCO MU1766

CHEVROLET EXPRESS 3500 2001-2002
GMC SAVANA 3500 2001-2002
