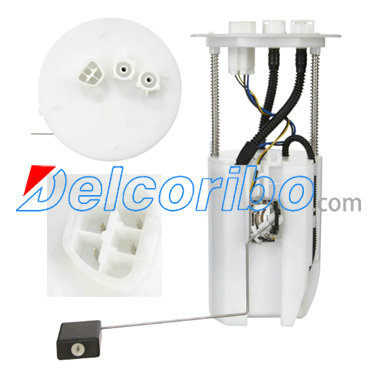

TOYOTA 770200C080, 770200C081, 770200C082, 833200C022, 833200C023, 833200C080 Electric Fuel Pump Assembly

Description: Fuel Pump Module Assembly
Gaskets Included: Yes
Height (in): 11.7
Max Pressure Range (Psi): 116
Max Free Flow (Gph): 66
Resistance Empty (Ohms): 410
Resistance Full (Ohms): 15
Rheostat Range (Ohms): 410-15
Inlet Quantity: 1
Inlet Type: Push In
Inlet Diameter (IN): 5/16
Outlet Quantity: 1
Outlet Type: Push In
Outlet Diameter (IN): 5/16
Compatible Fuels: Gas
Wiring Harness Included: No
Hardware Included: Yes
Min Free Flow Rate (Gph): 57
Min Pressure Range (Psi): 72.5
Strainer Included: Yes
Pin Count: 4
Pin Shape: Flat
Connector Shape: Trapeze
Connector Gender: Male
Inline Pump: No
In Tank: Yes
Negative Ground: Yes
Pump Type: Turbine
Volts: 12 vDC

770200C080, 770200C081, 770200C082, 833200C022, 833200C023, 833200C080,

SPECTRA PREMIUM SP9010M
DELPHI FG0931
AIRTEX E8869M

TOYOTA SEQUOIA 2008-2019
TOYOTA TUNDRA 2007-2019
